ESU137
- Product number:ESU137
- Order number:612747
- Brand:144
- Standard:
- Minimum package:1
- Unit:套
- Applications:Mechanical crimping tool for non insulated lugs and splices from 10-240mm2
Product desciption

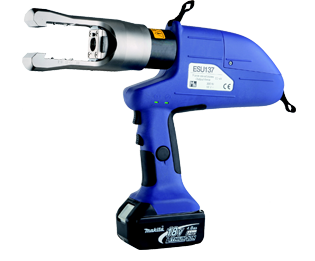

ESU137 electro-hydraulic compression tool
POWER 120 kN
Output force: 120 kN
Stroke: 27 mm
Autonomy: - 50 to 100 indent crimping operations with battery 4.0 Ah
- 100 to 220 crimping operations with battery 4.0 Ah
Cycle time: 7 to 12 s depending on the section
Dimensions: 400 x 310 x 72 mm
Weight: 5.9 kg (including the battery)
New features:
Electronic control of the cycle
Return programming according to the user, either automatic or manual
Automatic or manual return stroke
Automatic stop at the end of the cycle
2-stage hydraulic pump with pilot-operated valve which increases efficiency between 20 and 40%
Return sound signal
New PC software for diagnosis and analysis of data
|
Dies |
mm2 |
Terminals series |
Part Number |
Adapters |
 |
10 |
Preinsulated ELP series |
ELP460 |
U137-460 |
|
16 |
Preinsulated FLP series |
FLP460 |
U137-460 |
|
|
25 |
Preinsulated NP series |
NP460 |
U137-160 |
|
|
10 |
Non insulated ELS series |
ELS460 or C12 ELS |
U137-460 or U137C12 |
|
|
16 |
Non insulated FLS series |
FLS460 or C12 ELS |
U137-460 or U137C12 |
|
|
25 |
Non insulated TN25 series |
C12TN25 |
U137C12 |
|
|
35 |
Non insulated TN35 series |
C12TN35 |
U137C12 |
|
|
50 |
Non insulated TN50 series |
C12TN50 |
U137C12 |
|
|
70 |
Non insulated TN70 series |
C12TN70 |
U137C12 |
|
|
95 |
Non insulated TN95 series |
C12TN95 |
U137C12 |
|
|
120 |
Non insulated TN120 series |
C12TN120 |
U137C12 |
|
|
150 |
Non insulated TN150 series |
C12TN150 |
U137C12 |
|
|
185 |
Non insulated TN185 series |
C12TN185 |
U137C12 |
|
|
240 |
Non insulated TN240 series |
C12TN240 |
U137C12 |
-
